Export

BioModME allows the built model to be exported into 4 main categories:

  1. Prebuild, ready to run code, for either MATLAB or R.

  2. An “.rds” file (type of R data file) that can be reloaded into the program. This is the way to save and load a model into the program currently.

  3. A prebuild latex document all main model information.

  4. Downloading tables for parameters, equations, and initial conditions in csv, txt, or pdf form.

../../_images/30_export_page_marked.png

Feel free to try the code export if you have an interest in solving your model in those programming languages. Make sure to give any downloaded file a name.

Latex

When downloading the latex document a popup will appear, showing further customization options for that document.

../../_images/31_export_latex_options.png

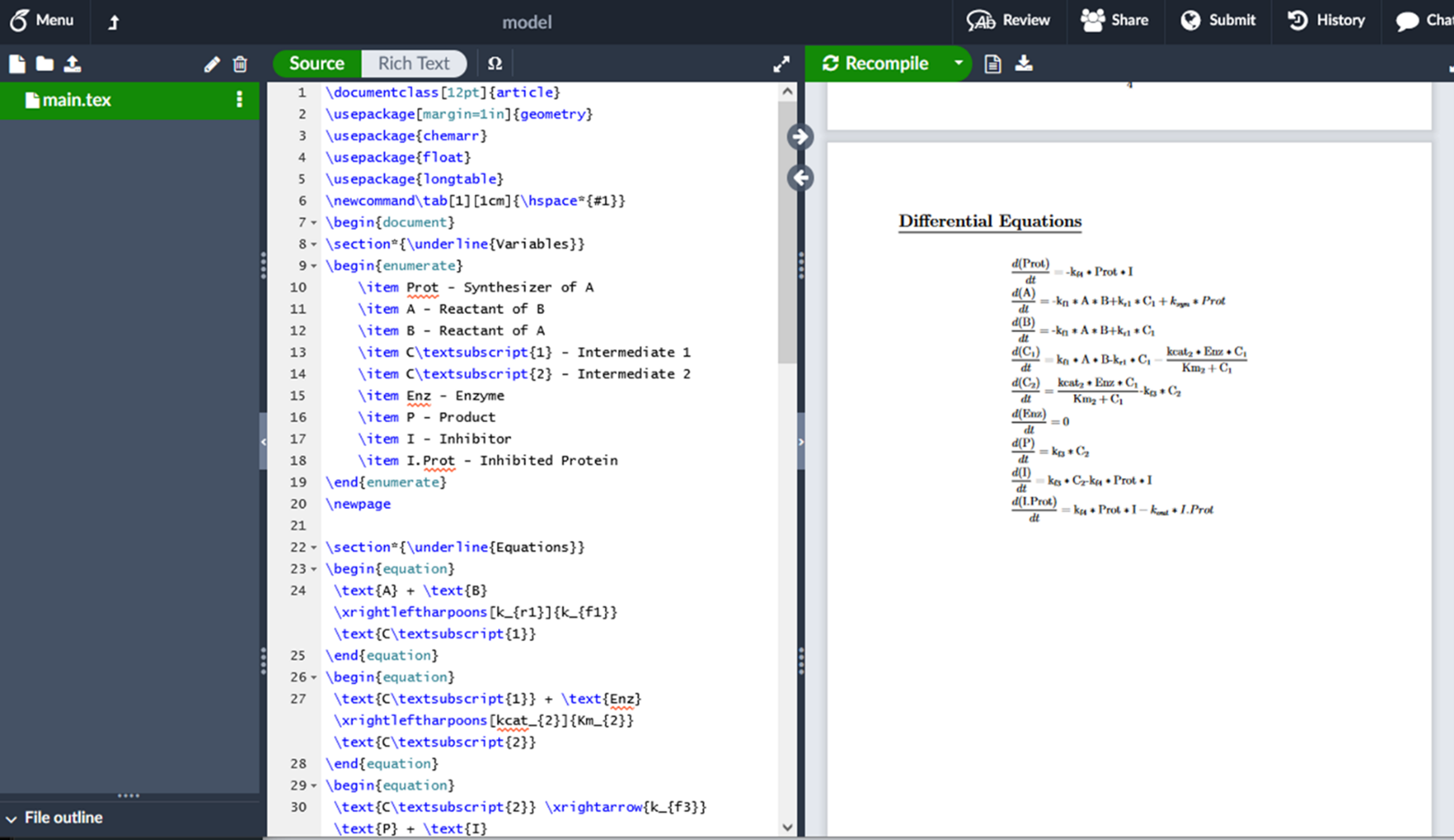

In this example, we will remove the “Additional equations” page as we did not create any non-standard equations. The generated document is created as a text file that can be copied to our latex editor of choice and run. I recommend using overleaf (www.overleaf.com) but any TeX editor will work. Below is a figure of the overleaf output:

../../_images/overleaf.png
